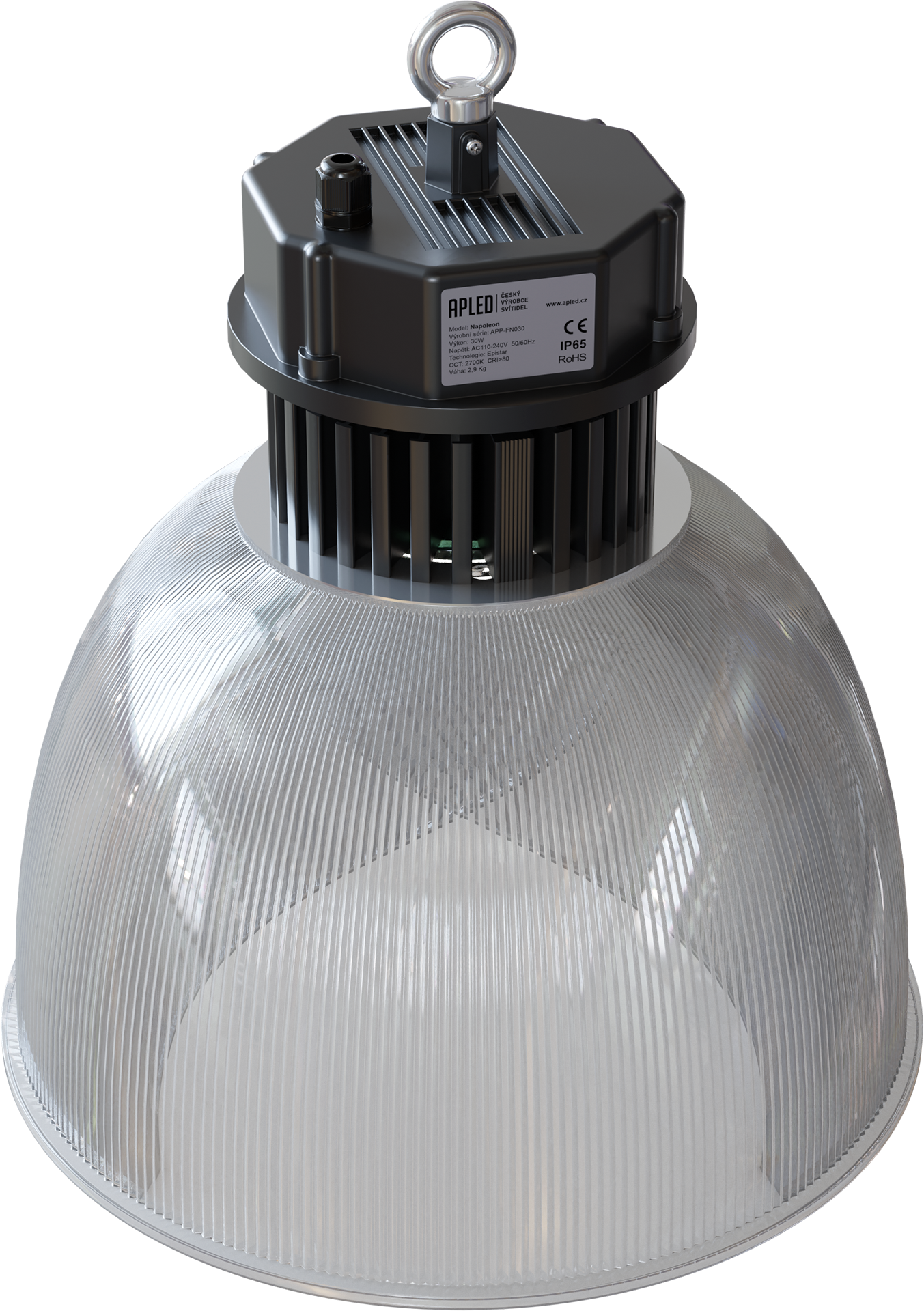

NAPOLEON 100 W
_

  • CRI 80

    věrnost podání barev

  • stmívatelné

  • IP65

    krytí

  • IK08

    mechanická odolnost

  • životnost 50 000 h

  • 4000 K

    color temperature

  • průmysl

  • sklad

  • výrobní haly

  • sport

Technical parameters
Ref. No. 20108

Add to selection
Wattage 100 W
Protection rating IP 65
Color temperature 4000 K
Color black-Anthracite
Luminous flux 10000 lm
Diameter 192 mm
Height 166 mm
Mounting suspended
Material aluminium alloy
LED Driver On/Off
Diffuser PC/Al
CRI 80
voltage AC 90–305 V
frequency range 50 ~ 60 Hz
luminaire efficacy min. 100lm/W
working temperature -30° to +50°C
energy class E
protection class I.
lifetime 50 000 h
weight 6,5 kg
beam angle 60°
LED chip COB-chip
IK code IK08
power factor min. 0,95
Back

Drawing

Download

_
Catalogue sheets napoleon_data_sheet.pdf (pdf, 199.4 kB)
_
Declaration of conformity eu_dc_20090.pdf (pdf, 62.3 kB)
